Multilayers PCBs are made with alternating layers of insulating material with conductive patterns on two or more signal layers between which the required connections are made. The electrical connection between the conductive layers is provided by the chemical-galvanic metallization of the holes. Multilayer PCBs feature increased reliability and density of installation, resistance to climatic conditions and mechanical impacts

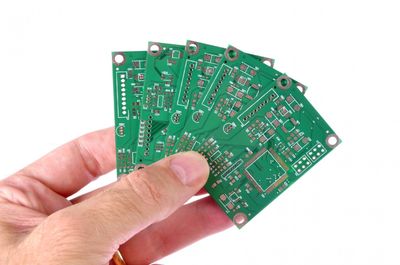

Double side PCBs probably are the most common type PCB. They allow for the routing of traces around each other by jumping between a top and bottom layer by way of vias. The ability to cross paths from top to bottom greatly increases the circuit designer's flexibility in circuits designing and lends itself to greatly increased circuit densities. This type of board is relatively low cost, but only allows an intermediate level of circuit complexity and does not lend itself to electromagnetic interference reduction techniques.
Rigid-Flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application. Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application. The flexible substrates are designed to be in a constant state of flex and are usually formed into the flexed curve during manufacturing or installation. Rigid-Flex designs are more challenging than the design of a typical rigid board environment, as these boards are designed in a 3D space, which also offers greater spatial efficiency. By being able to design in three dimensions rigid flex designers can twist, fold and roll the flexible board substrates to achieve their desired shape for the final application's package.
Among all Metal core PCBs,Aluminum PCBs is the most common type - the base material consists of aluminum core with standard FR4. It features a thermal clad layer that dissipates heat in a highly efficient manner, while cooling components and increasing the overall performance of the products. Currently, Aluminum Backed PCBs is regarded as the solution to high power and tight tolerance applications.
Advantages of Aluminum PCB
1.Environmentally Friendly: Aluminum is non-toxic and recyclable. Manufacturing with aluminum is also conducive to conserving energy due to its ease of assembly. For printed circuit board suppliers, using this metal helps maintain the health of our planet.
2.Heat dissipation: High temperatures can cause severe damage to electronics, so it is wise to use a material that can help dissipate heat. Aluminum can actually transfer heat away from vital components, thus minimizing the harmful effect it could have on the circuit board.
3.Higher durability: Aluminum provides strength and durability to a product that ceramic or fiberglass bases cannot. Aluminum is a sturdy base material that can reduce accidental breakage during manufacturing, handling, and everyday use.
4.Lightweight: For its incredible durability, aluminum is a surprisingly lightweight metal. Aluminum adds strength and resilience without adding on any additional weight.
